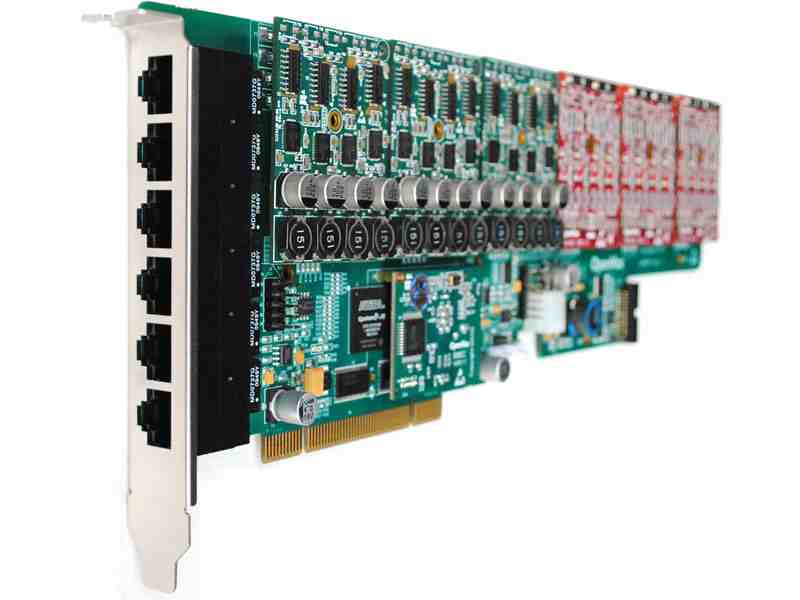

AE2410P

Card Asterisk AE2410P

AE2410P
OpenVox AE2410P is a new generation analog card with Octasic Hardware Echo Cancellation Module on board. With the interchangeable quad-FXS and quad-FXO modules, AE2410P can eliminate.

Mã sản phẩm: AE2410P Danh mục:
Product Spotlight

OpenVox AE2410P takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 24 ports.

  • Adjustable Interrupt Routing Design
  • Interrupts frequency adjustment
  • Up to 24 Simultaneous PSTN Calls (Per PCI Slot)
  • Compatible with All Commercially Available Motherboards
  • Octasic® Hardware Echo Cancellation Module Available
  • 3-Month “No Questions Asked” Return Policy
  • Lifetime Warranty
Overview

AE2410P is a new generation analog card with Octasic® Hardware Echo Cancellation Module on board. With the interchangeable quad-FXS and quad-FXO modules, AE2410P can eliminate the requirement for separate channel banks or access gateways.

Once the Octasic® DSP module EC2032 is added to the AE2410P, please make sure you are ready to say goodbye to the poor voice quality and echo echo echo in your phone system. No one will even get a chance to hear that any more! The AE2410P with Octasic DSP module will support Telco-grade hardware echo cancellation on all channels, up to the card’s maximum configuration in 24 ports with no additional CPU load.

AE2410P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Target Applications
  • Channel Bank Replacement / Alternative
  • Small Office Home Office (SOHO) applications
  • Small and Medium Business (SMB) applications
  • Gateway Termination to analog telephones/lines
Services And Features
  • Caller ID and Call Waiting Caller ID
  • ADSI Telephones
  • Loopstart Signaling Support
Technical Specifications
  • Up to 24 ports through a combination of FXS400 and FXO400 modules
  • Full-length analog card
  • Up to 6 quad FXS or FXO modules
  • RJ45 connector
  • 32-bit 33MHz PCI and fully PCI 2.3 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
  • 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
  • Autosense compatibility with 5 V and 3.3 V PCI busses compatible
  • FPGA design, upgradeable firmware onsite
  • Power: 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V.
  • Operation temperature: 0°C to 50 °C
  • Storage temperature: -40°C to 125°C
  • Size: 31.1*9.8*1.8cm
  • Weight: 175g
Optional Octasic® DSP Echo Cancellation Module — EC2032
  • 1024 taps/128 ms tail/channel (on all channel densities)
  • Octasic® music protection
  • Automatic level control (G.169)
  • Field upgradeable algorithm
  • V.25 / V.8 answer tone
  • DTMF as per Q.24
  • No CPU load as a result of echo cancellation.
  • Does not increase the physical size of the card, and no additional slot is required
  • EC2032 (SMEC V1.1) power: 3.83W
Operating Systems
  • Linux (all versions, releases and distributions from 1.0 up)
Minimum Hardware Requirement
  • 800-Mhz Pentium III
  • 128MB RAM
  • Available PCI Slot
Certification
  • FCC Part 15,FCC Part 68,CE(EN55022, EN55024) and RoHS Compliant
